KITCHEN EXTRACT CLEANING CASE STUDY JULY 2017

Project 3 of 13

Overview

Job Type: Commercial Kitchen Extract Cleaning

Site details: A contemporary family run bistro.

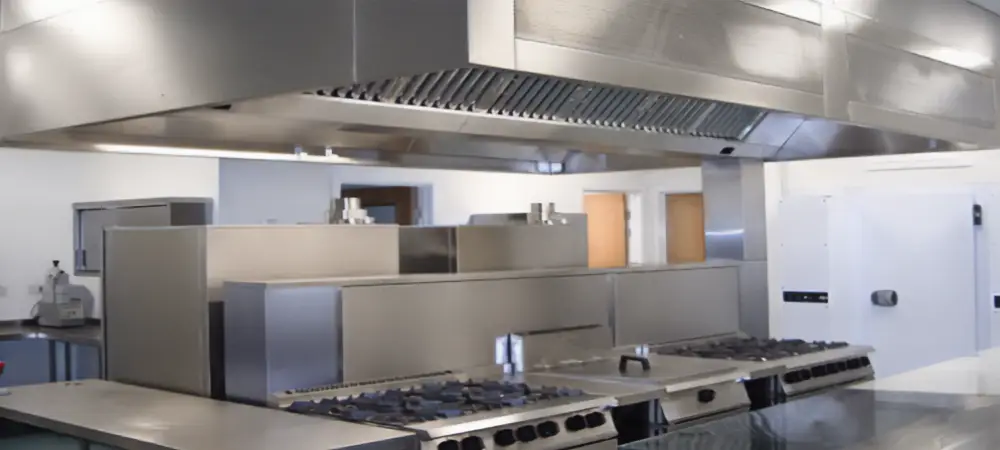

Special features: System comprises of one canopy hood (2 x 1 x 0.5)m with approximately 3 metres of extract ductwork and a medium extract fan unit.

Due to the amount of cooking carried out at this site, this system is cleaned on a 6 monthly basis

Observations



  1. Kitchen Extract Systems have an increased fire, odour, vermin & hygiene risk compared to general supply and extract systems. This is due to the grease build up acting as a potential ignition source, contributed by the heat in the kitchen, possibly elevated oxygen levels from a fresh air supply source and the general deposition of cooking oils on ventilation system components and the ductwork itself acting as fuel.
  2. Wet Film Thickness Tests (WFTT) were carried out at various locations throughout the system, to determine the overall level of grease deposition. Individual readings of over 50 microns are deemed unclean. An average reading across the system of 200 microns or more is deemed unclean. Any individual readings in excess of 500 microns require immediate attention. In accordance with BESA TR19, tests were carried out at the following locations (where accessible).
  3. The WFTT readings pre clean were as follows: Canopy 600 microns, ductwork from canopy 400 microns, fan unit 200 microns and ductwork after fan unit 400 microns.
  4. The work was carried out successfully by degreasing and deep cleaning the canopy, grease filters and the internal surfaces of the associated ductwork.
  5. All areas were thoroughly cleaned with results below 50 microns.
  6. No faults or recommendations other than continued cleaning at the recommended intervals.
